Sunetex 5000 Series 1% Openness PVC Polyester Sunscreen Roller Blind Fabric

Item Specification
Series 5000 SERIES
Openness 1%
Composition 29% Polyester & 71% PVC
Finished Width 200/250/300cm
Thickness 0.73mm ± 5%
Standard Packing 30M
Mesh Weight per m² 525g/m²±5%
Mesh/In(inch) 82*34
Breaking Strength Warp 2740N/5cm Weft 1200N/5cm
Anti-Ultraviolet 99%
Color Fastness GRADE 8
Fire Classification NFPA701(USA)

Product Detail

Product Tags

Polyester 5% Openness Sunscreen Fabric

5000Series

product-description1

Product Category : SuneTex™ Fabrics

Colors

product description01

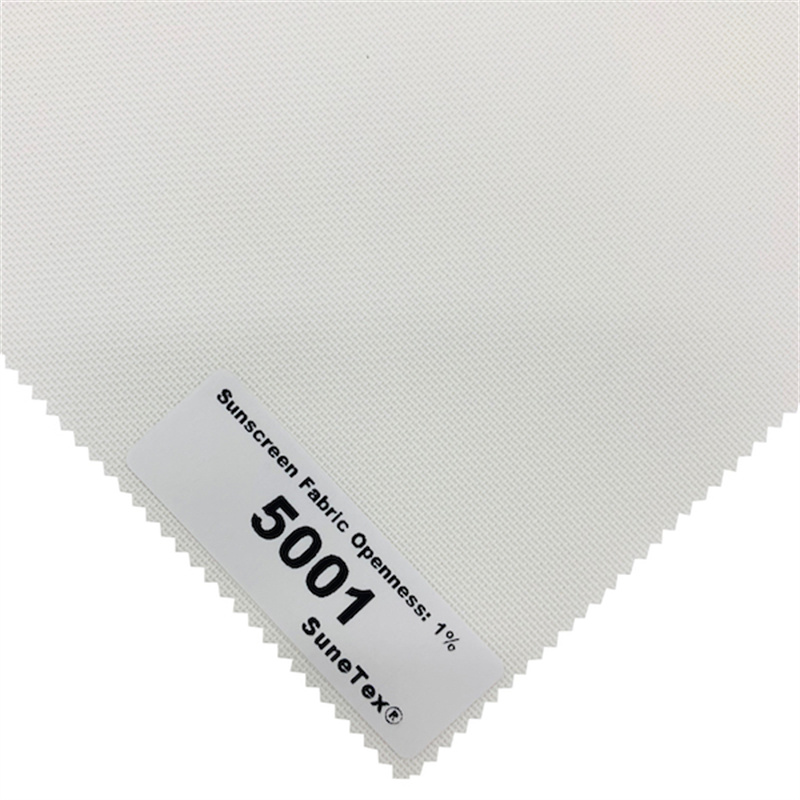

5001

product description02

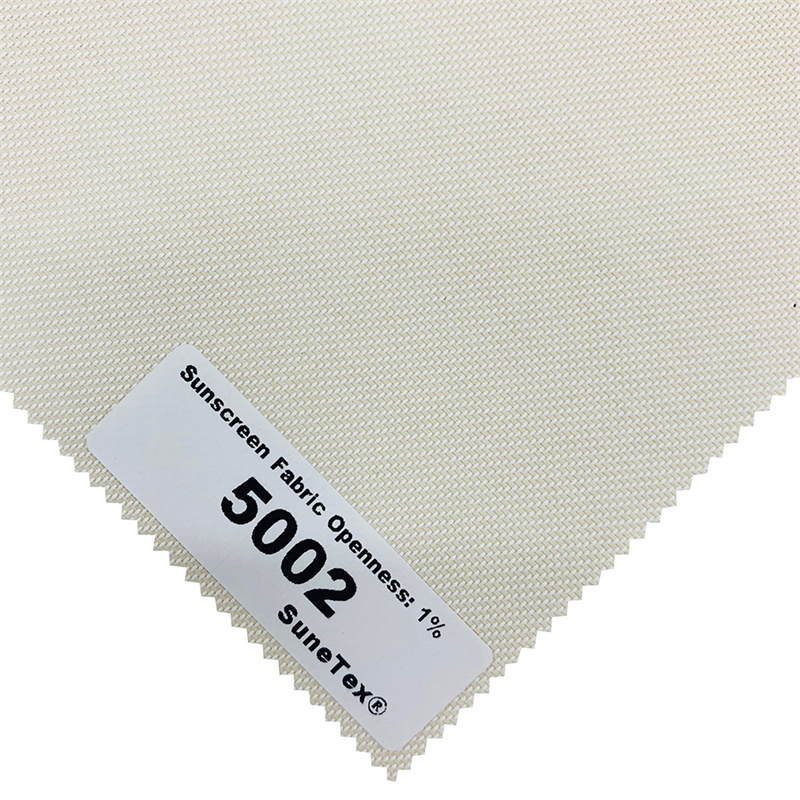

5002

product description03

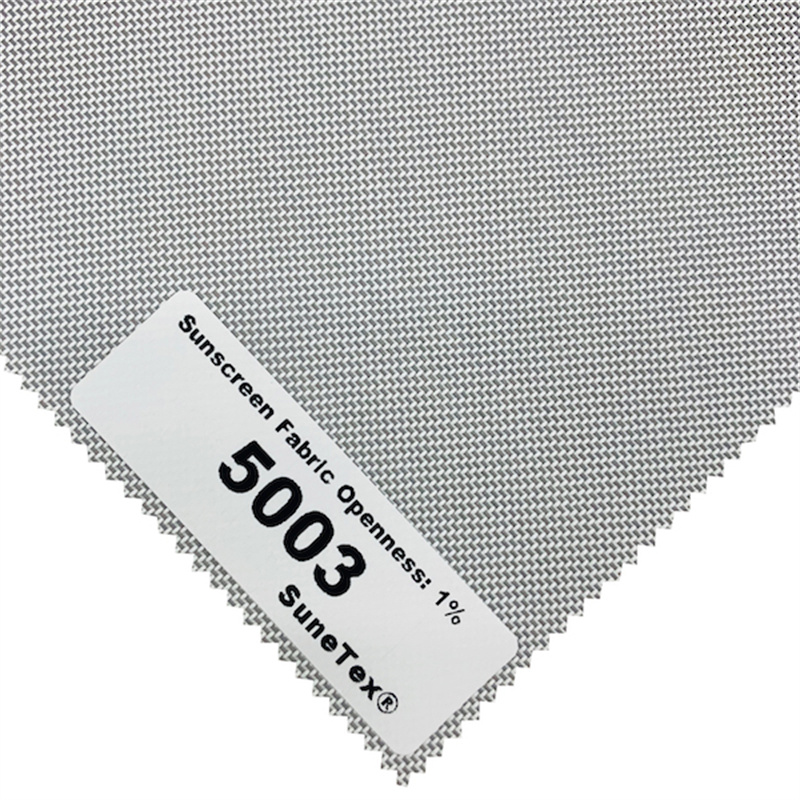

5003

product description04

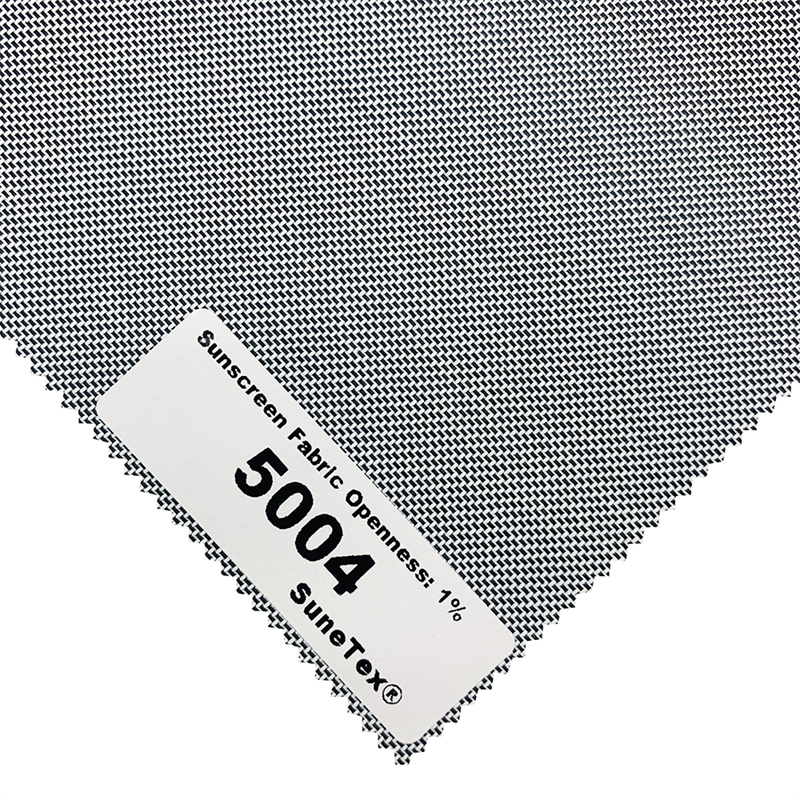

5004

Applications

product-description05

Product Description

Sunetex 5000 Series sunscreen fabric is a premium commercial-grade solar screen material blended with 29% polyester and 71% PVC, engineered for long-lasting indoor & outdoor window shading solutions with a 10-year warranty. Featuring only 1% openness, this tight mesh delivers 99% UV blockage, drastically cutting solar heat gain to boost energy efficiency for offices, hotels, malls and residential buildings.

With a solid 525g/m² weight and 0.73mm thickness, the fabric boasts outstanding tensile strength: 2740N/5cm warp and 1200N/5cm weft, resisting tearing and sagging during long-term roller blind operation. It meets strict global certifications including NFPA701 fire retardant standard, RoHS compliance, waterproof surface and eco-friendly low-formula construction, eliminating safety risks for commercial public spaces.

Its color fastness reaches Grade 4.5 per AATCC 16-2003, resisting fading under prolonged sunlight exposure. Available in 200/250/300cm full widths with standard 30m roll packing, the 82*34 mesh structure enables uniform light filtration without glare. Ideal for B2B blind manufacturers, interior contractors and architectural designers, this fireproof, anti-UV sunscreen fabric balances durability, safety and cost-effectiveness, supporting bulk wholesale custom orders for global shading projects.
